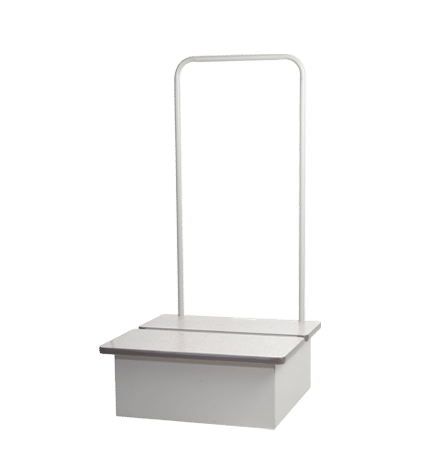

Low Base Imaging Footstool

The Low Base Imaging Footstool has a lightweight platform standing only 9in high that conveniently positions the patient for lateral views of the foot and ankle.

Add to Quote

High volume order? Customization? Questions? Speak with a sales rep.

The Low Base Imaging Footstool conveniently positions patients for lateral views of the foot and ankle. With a platform only standing 9in. high - the product is low to the ground and lightweight, and unstable patients will have limited issues with the convenient handrail. Split images quickly and easily by flipping the orientation of the 17x17in. image receptor and smaller.
  • Lightweight
  • Handrail
  • Slip resistant base
  • Rated up to 500lbs
  • Accommodates 17x17in. Image receptors and smaller
  • Low to ground
Base: 22 x 22 x 9.25 in. (55.9 x 55.9 x 23.5 cm)
Handle height to floor: 45 in. (114.3 cm)
Cassette/Panel Slot Dimensions: 22.25 x 0.75 x 2.125 in. (56.5 x 1.9 x 5.4 cm)
33.6 lbs. (15.24 kg)
Box 1: 24 x 24 x 12 in. (61 x 61 x 30.5 cm)
Box 2: 48 x 20 x 3 in. (122 x 50.8 x 7.6 cm)
Box 1: 35 lbs. (15.87 kg)
Box 2: 11 lbs. (4.99 kg)
500 lbs. (226.8 kg)

DR Imaging Footstools Brochure


Low Base Footstool Brochure


Low Base Imaging Footstool Datasheet (FS)
