U-Arm Footstool

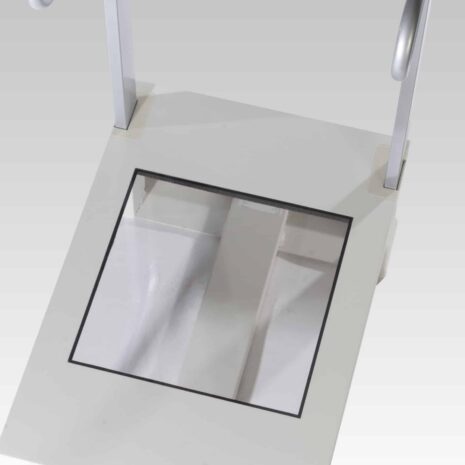

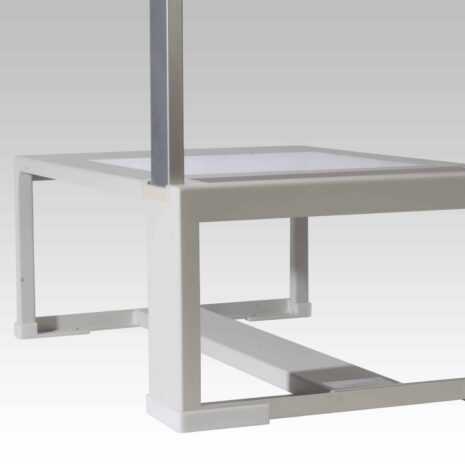

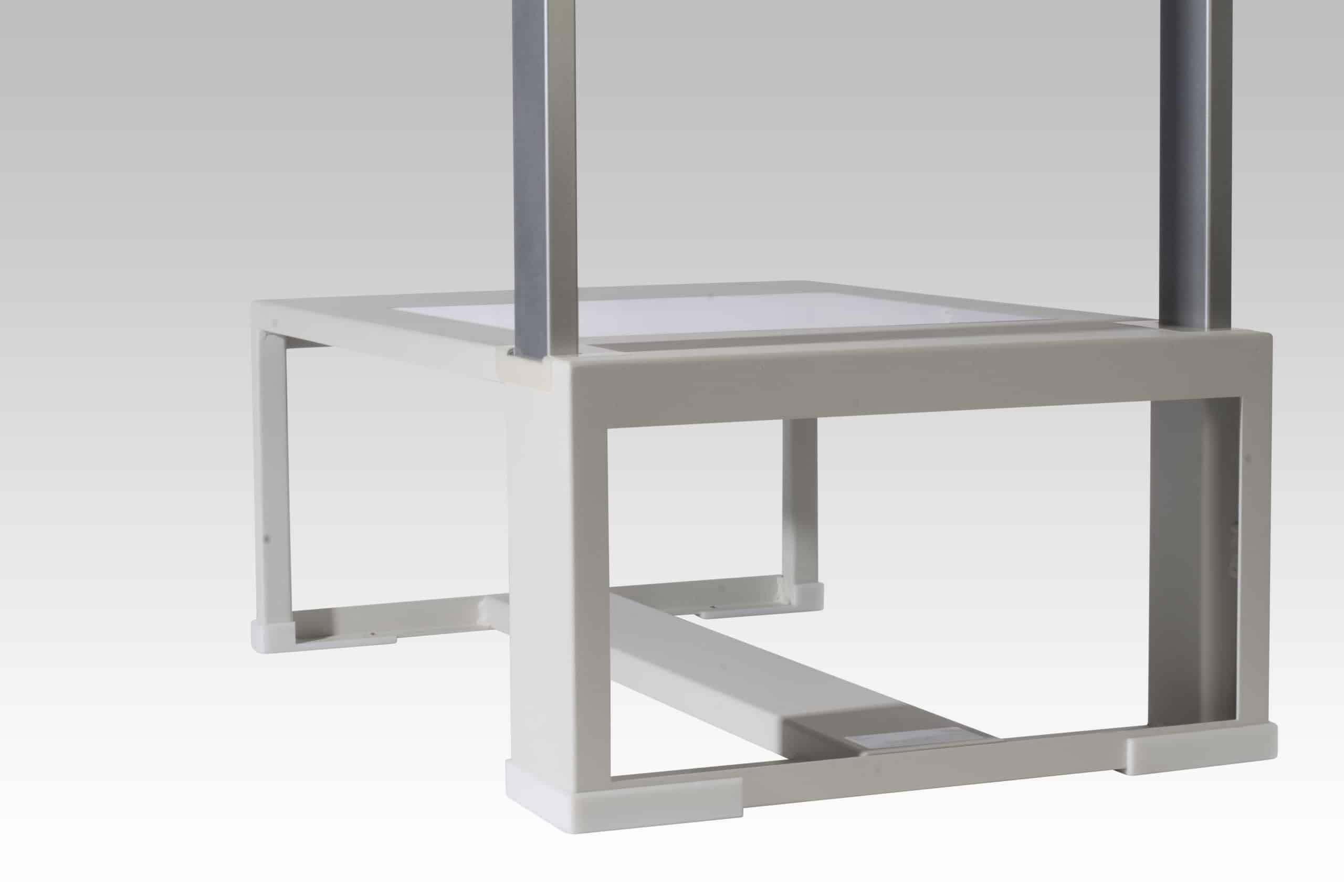

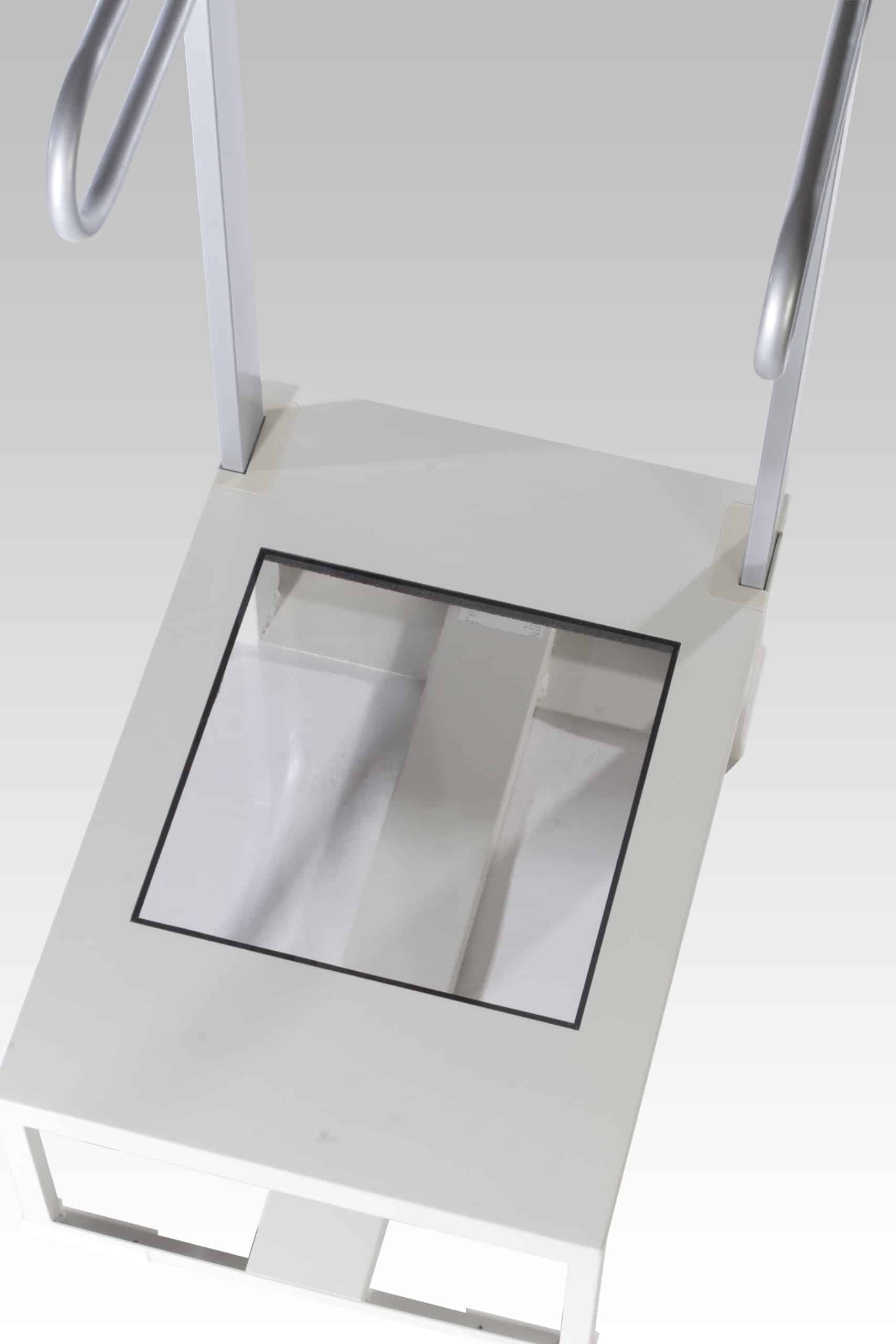

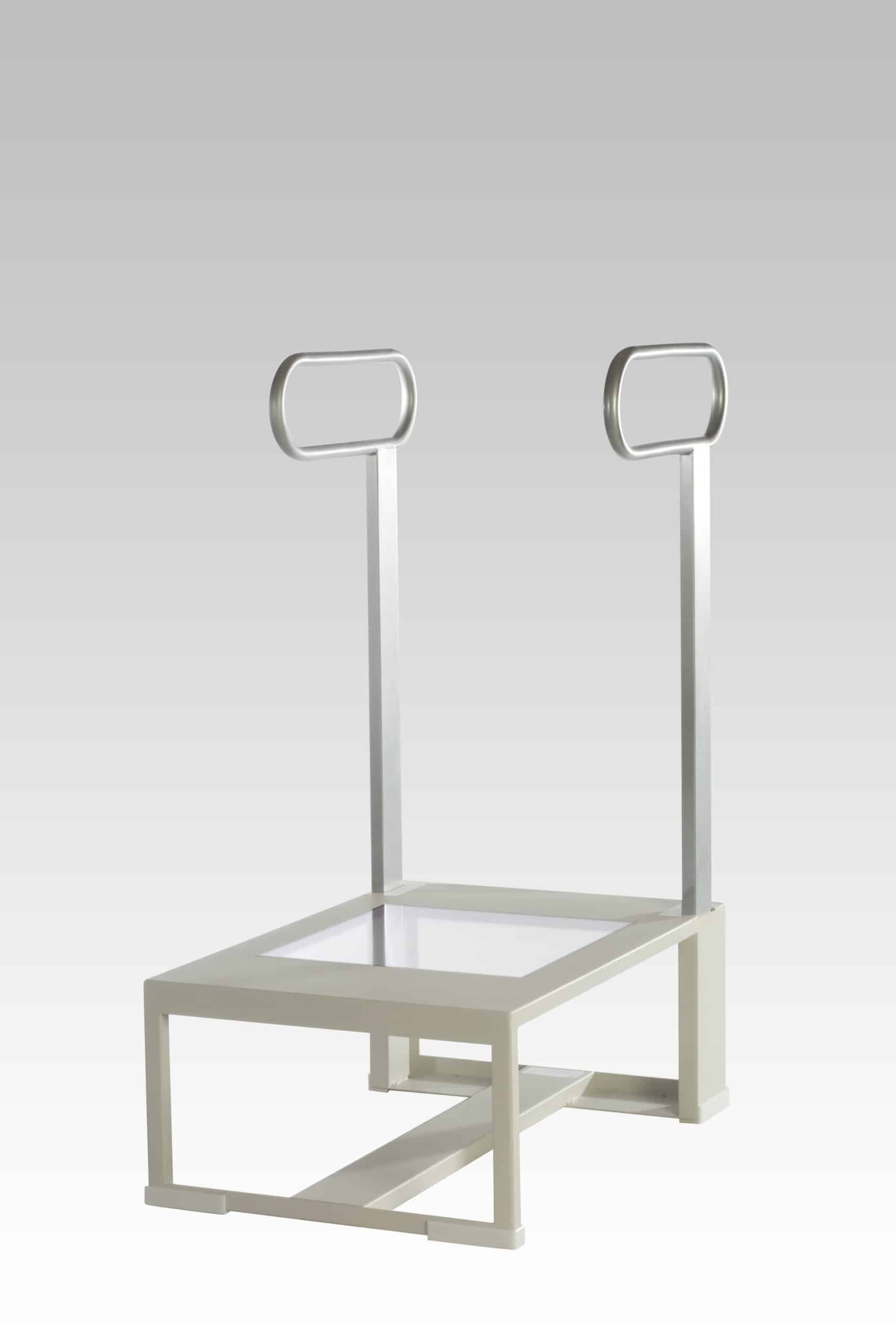

The U-Arm Footstool features handrails for stability, a single-step platform with a clear top for easy positioning, and allows for standing feet x-rays without applying any patient weight to the imaging receptor.

Add to Quote

High volume order? Customization? Questions? Speak with a sales rep.

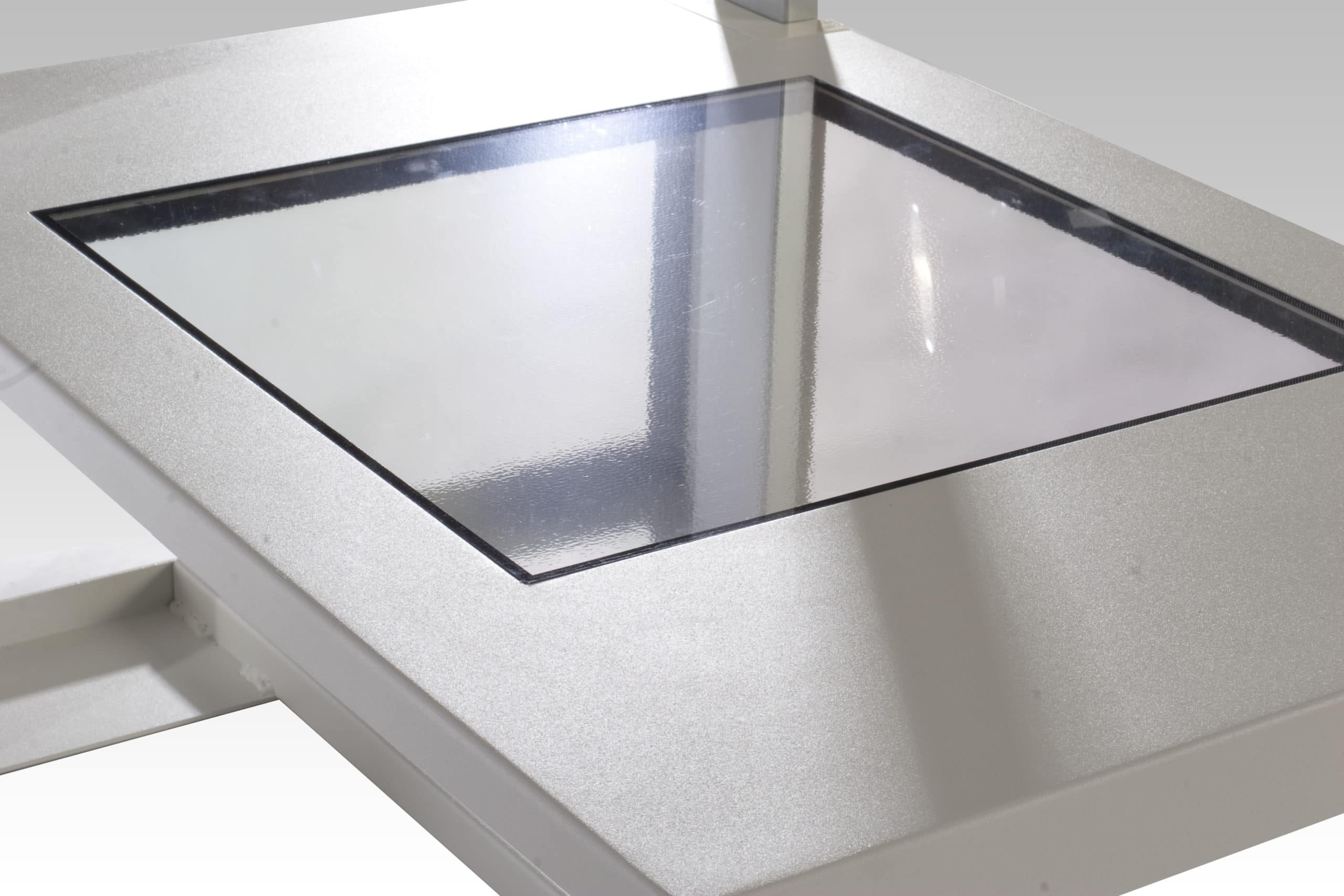

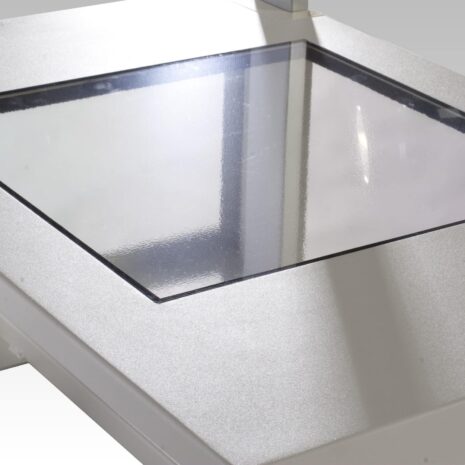

The U-Arm Footstool allows for standing feet x-rays without applying any patient weight to the imaging receptor. A simple single-step platform with a clear top to allows the radiographer easy positioning during the exam. It is lightweight and durable. The U-Arm Footstool also has a weight capacity of 500lb. and has handrails for patient stability. The clear top allows the radiographer to easily position the detector underneath the unit. If your U-Arm does not go low enough, our Height Adjustable Kit should do the trick. It is a field upgrade kit to allow the U-Arm Footstool to be raised 2in to 16in overall height and 14.75in detector cavity height.
  • Holds 500lb.
  • Standing feet exams with most U-Arms
  • Handrails for patient support
  • Single step platform
  • Lightweight
VFS
Base: 35 x 14 x 24 in. (88.9 x 35.56 x 60.96 cm)
Handrail Height: 35 in. (88.9 cm)
U-Arm Cavity: 10.25 x 28.5 in. (26 x 72.4 cm)
Imaging Area: 17.25 x 17.25 in. (43.8 x 43.8 cm)
33.6 lbs. (15.24 kg)
60 x 26 x 15 in. (152.4 x 66 x 38.1 cm)
75 lbs. (34 kg)
500 lbs. (226.8 kg)
