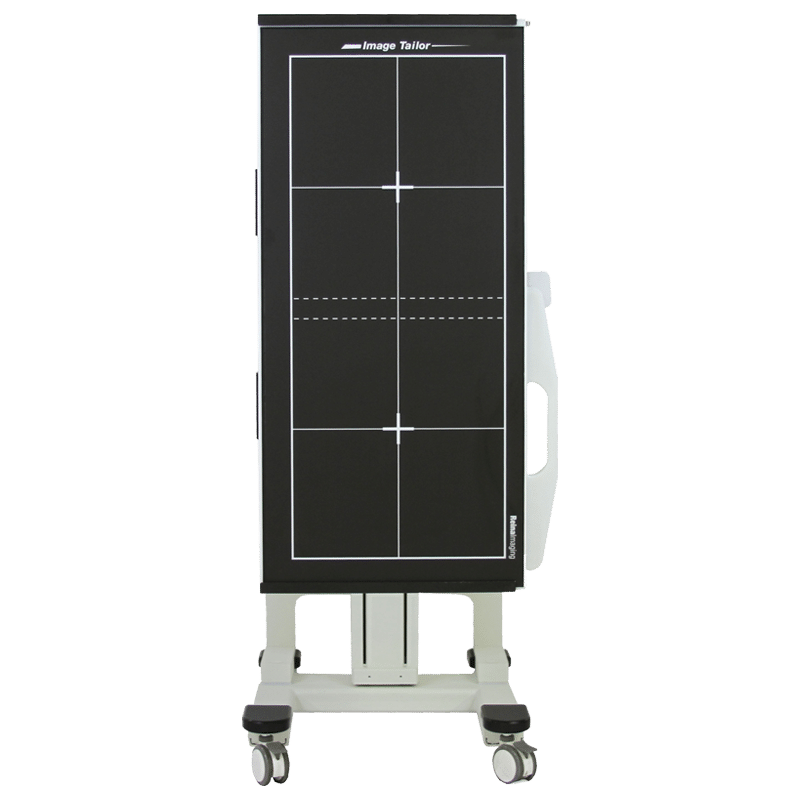

34in 2 Panel Image Tailor Mobile Positioning Partner

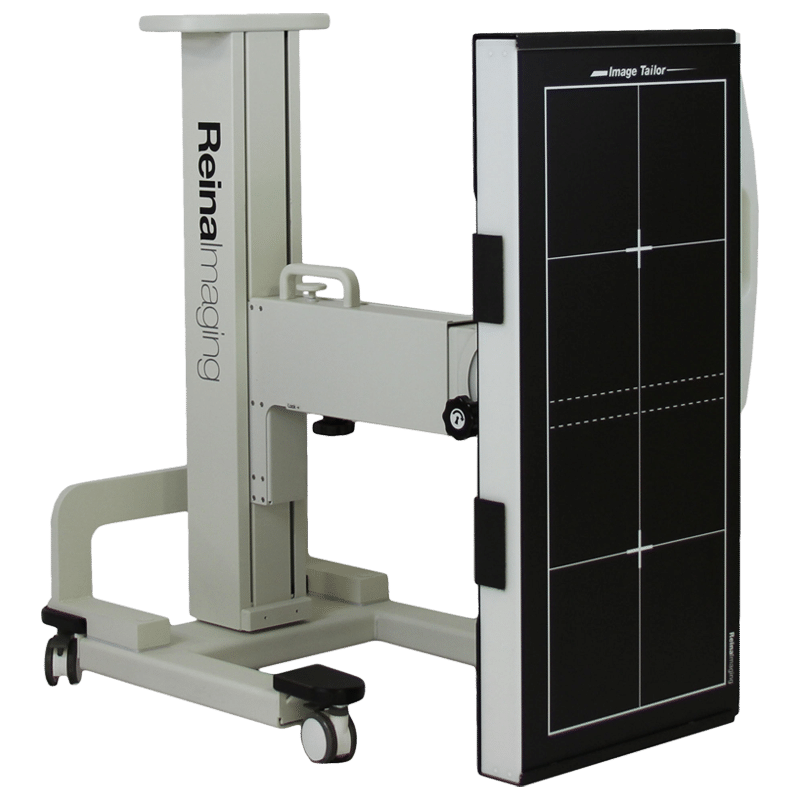

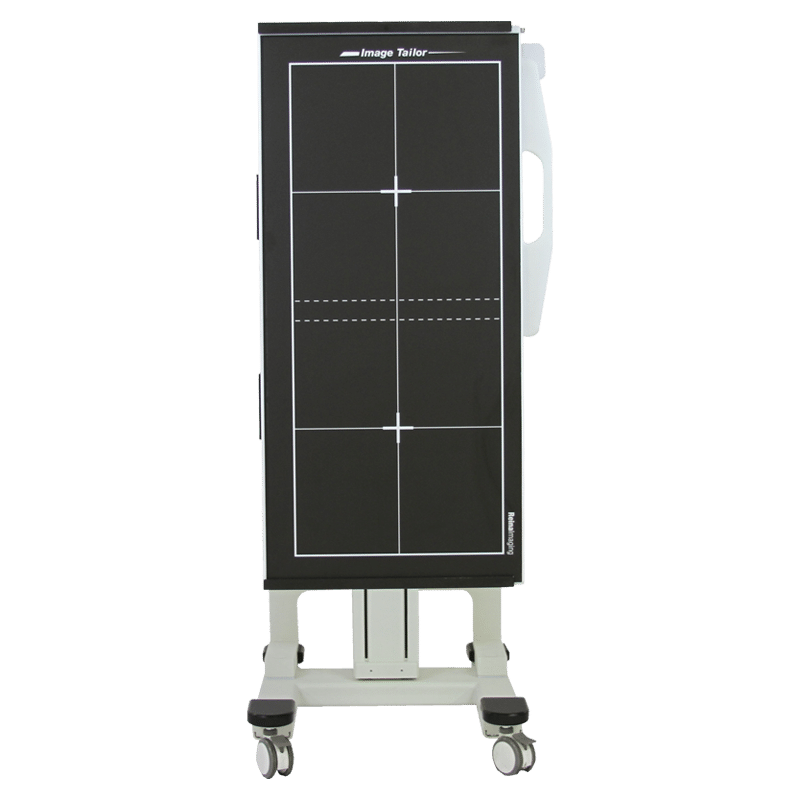

The Image Tailor Mobile DR Panel Positioning Partner is a multi-functional positioning device that allows hips to ankle exams to be performed in the most difficult imaging environments. The Image Tailor allows for quick and effective manual stitching to create an image up to 34 in. with a single DR panel allowing healthcare providers to leverage the full value from a small format detector.

Add to Quote

High volume order? Customization? Questions? Speak with a sales rep.

The Image Tailor Mobile DR Positioning Partner is a multi-functional positioning device that allows hips to ankle exams to be performed in the most difficult imaging environments. Its compact footprint makes it simple to drape and keep sterile when used in surgery and easy to store when not in use. Imaging hips to ankles can be a challenge, and there are several issues that one must consider: the process of care, patient safety, efficiencies, clinical outcomes, and, of course, cost. Using multiple image receptors or one single long-format detector increases cost dramatically. The Image Tailor stitching cabinet allows for quick and easy manual stitching with a single DR panel allowing the healthcare provider's facility to leverage the full value from a small format detector. The detector can be quickly moved into position to create a long-length image up to 34in. The factory configured detector positions for each exposure are engineered to work flawlessly with your DR panel and stitching software requirements. The easy to use detent system offers the user the familiar touch and feel of traditional capital equipment.
  • Designed for precise fitment of your 14x17in. or 17x17in. image receptor
  • Features an image receptor tray and built in detents to speed workflow and reduce patient hold times
  • Factory configured overlap area and available embedded markers for every OEM panel and stitching software requirement
  • Greatly improves total cost of ownership for single detector rooms

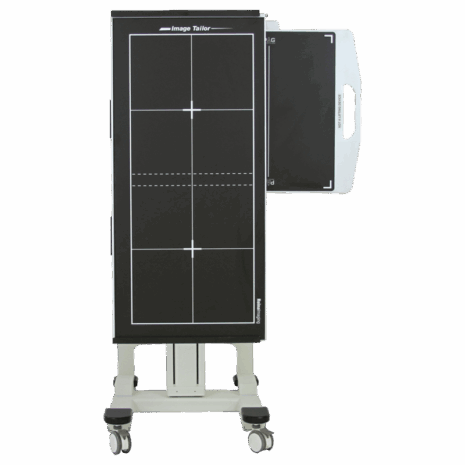

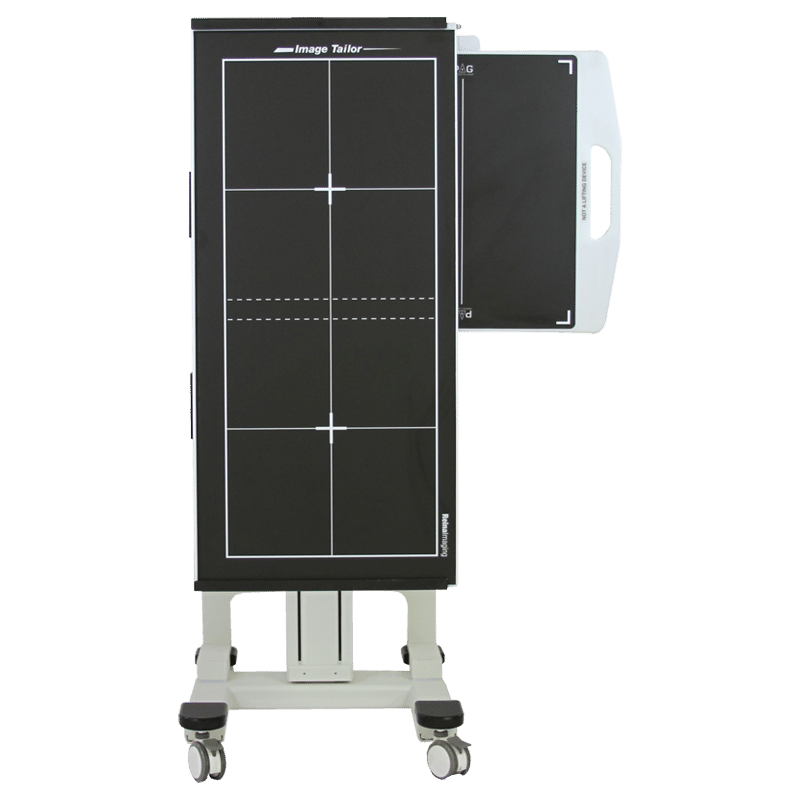

  • Removable custom detector holder available with or without a grid allows the DR panel to be shared for portable imaging and free exposures without ever removing it from the holder

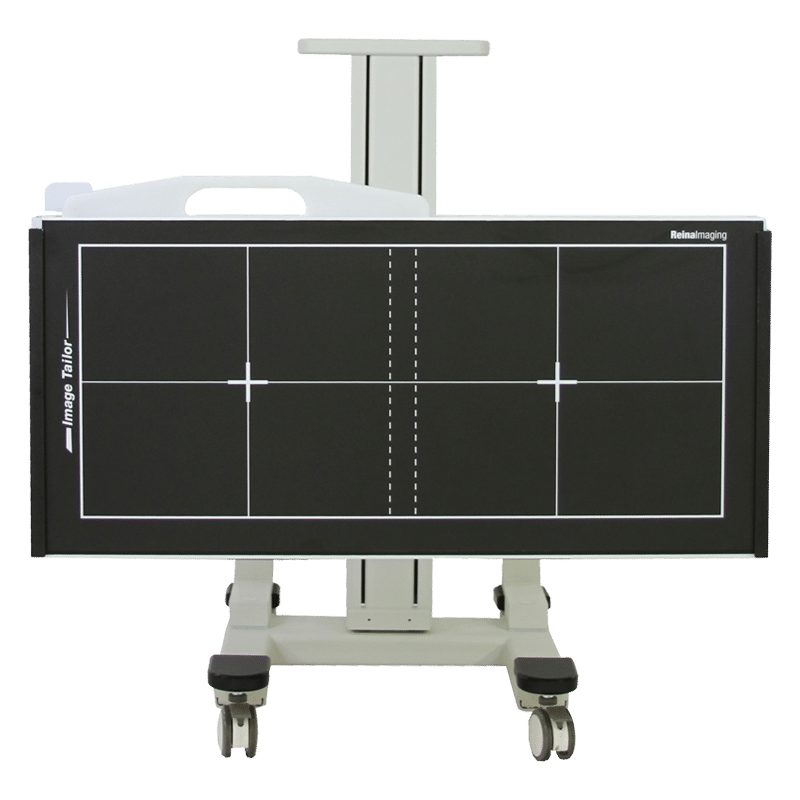

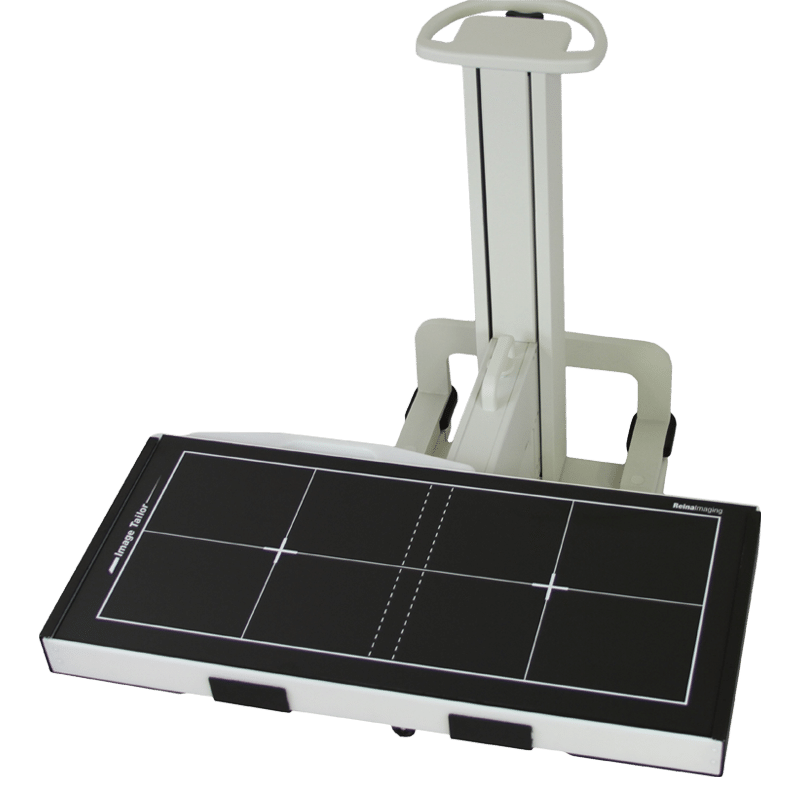

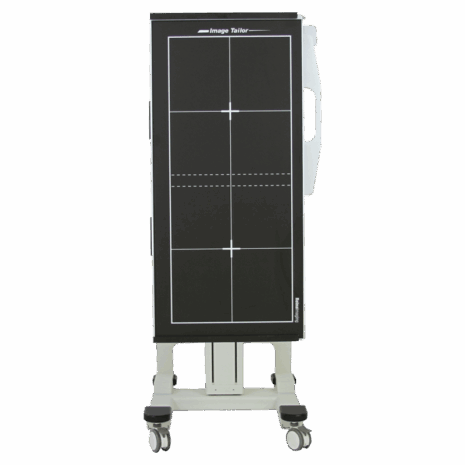

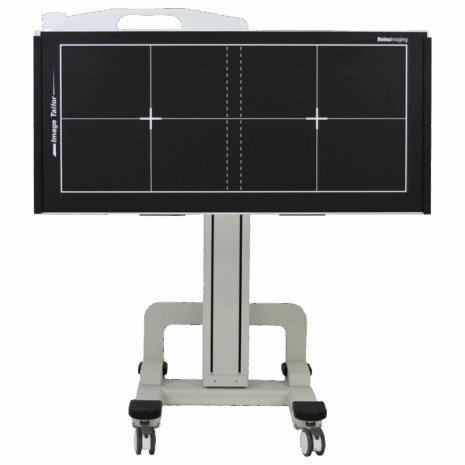

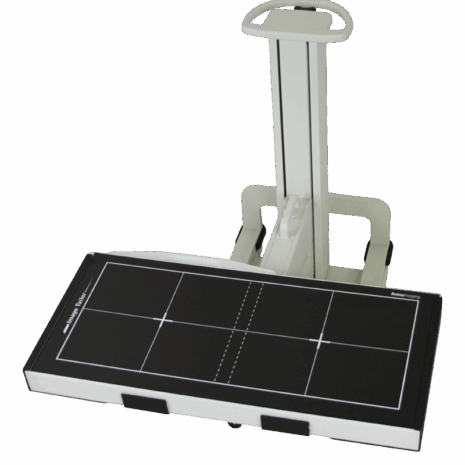

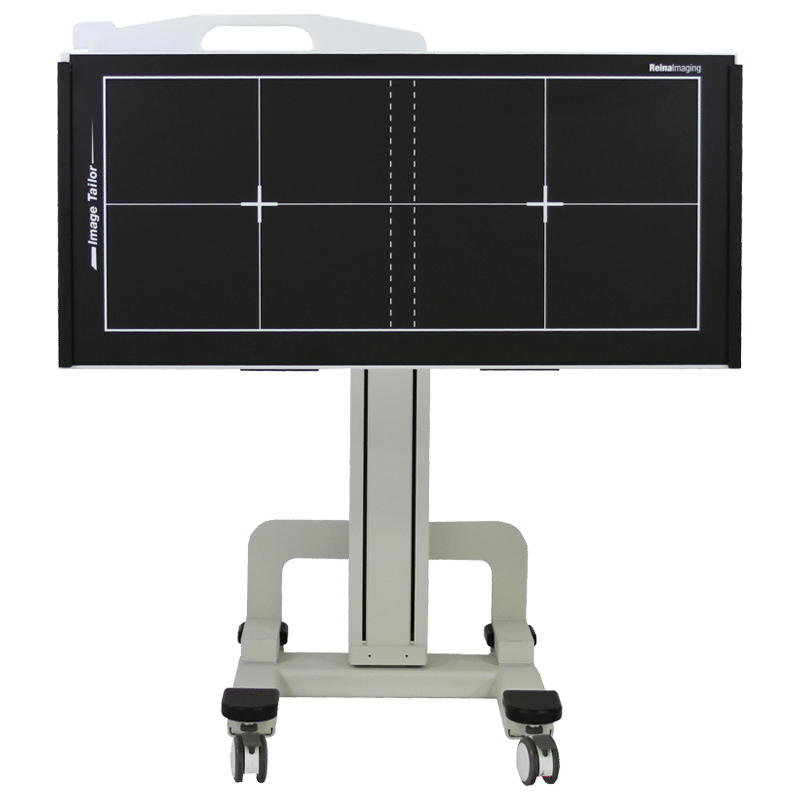

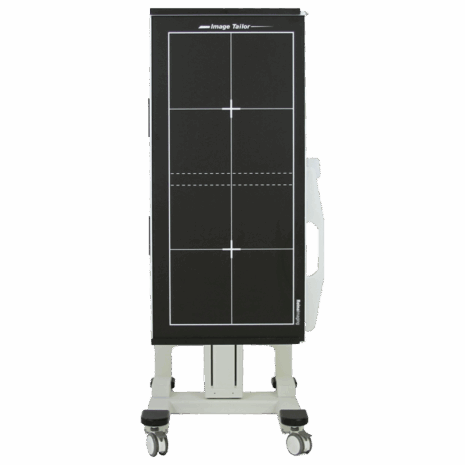

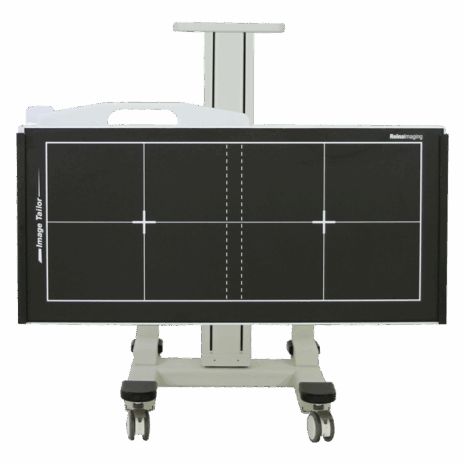

  • Simple push-button mechanism engages the zero-gravity lift assist mechanism in the vertical position and disengages for the landscape and under-table positions
  • Available with Reina Imaging’s sliding Easy Reader™ radiographic ruler
POSPIT2

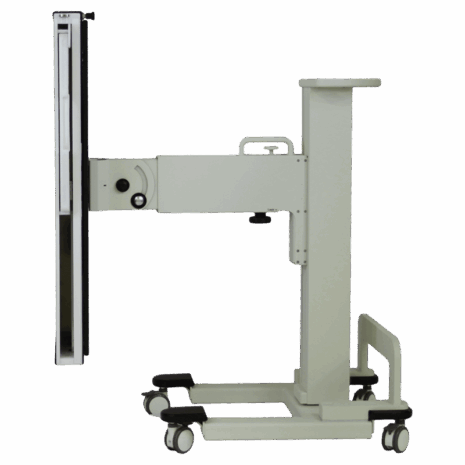

Overall: 30 x 23.25 x 40 in. (76.2 x 59 x 101.6 cm), Total Vertical Stroke: 44 in. (111.75 cm), Pneumatic Piston Vertical Stroke: 19 in. (48.25 cm), Horizontal Arm Vertical Stroke: 25 in. (63.5 cm), Horizontal Stroke (Telescoping Arm): 6 in. (15.25 cm), Max. Height Active Imaging Area - Portrait: 75.5 in. (191.77 cm), Min. Height Active Imaging Area - Portrait: 3 in. (7.5 cm), Max. Height Active Imaging Area - Landscape: 66.5 in. (168.91 cm), Min. Height Active Imaging Area - Landscape: 8.25 in. (20.955 cm), Max. Height Active Imaging Area - Undertable: 67.5 in. (171.5 cm), Min. Height Active Imaging Area - Undertable: 23.5 in. (60cm)
196 lbs. (89 kg)
315 lbs. (142.88 kg)
