2 Step Footstool

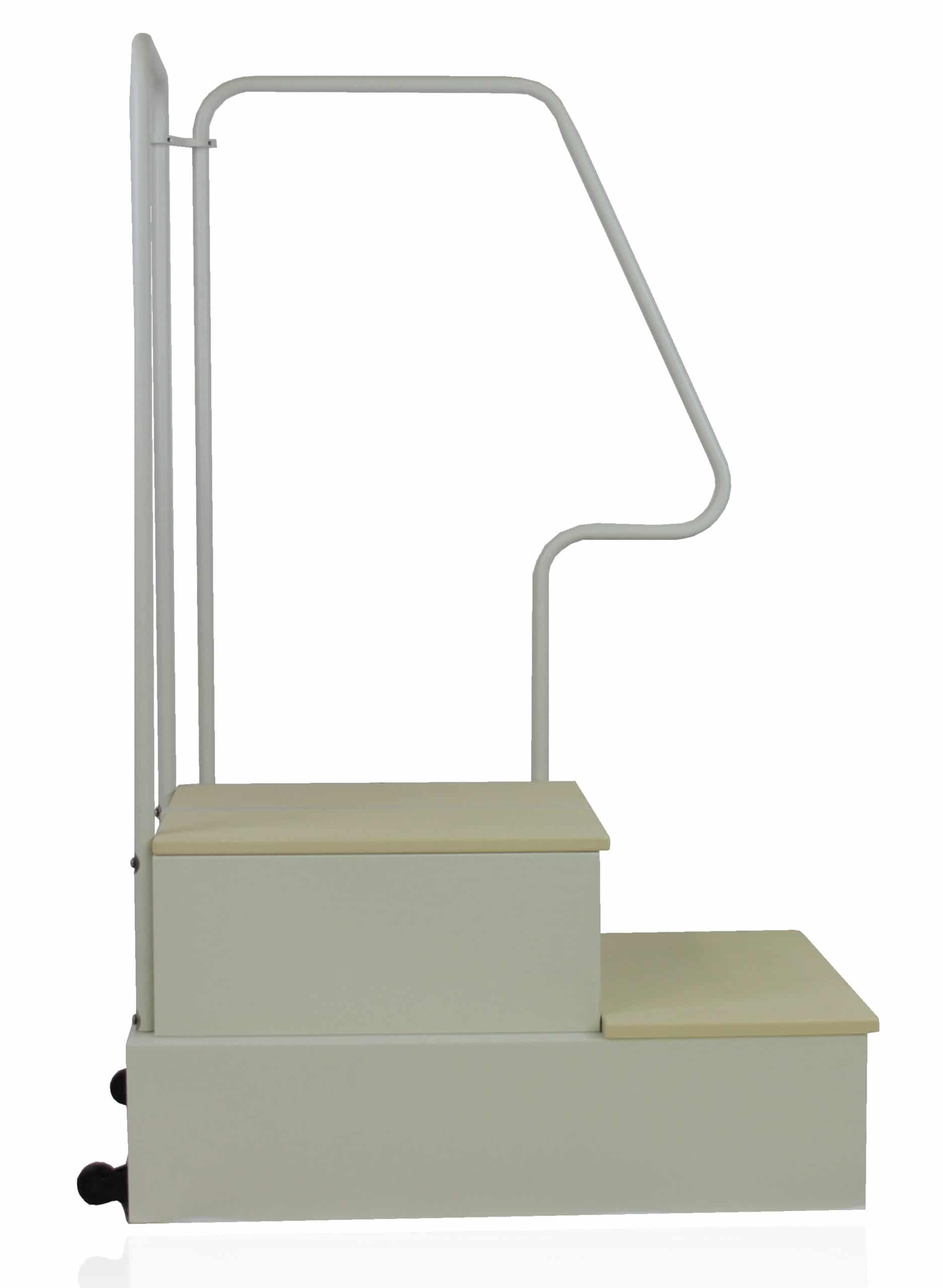

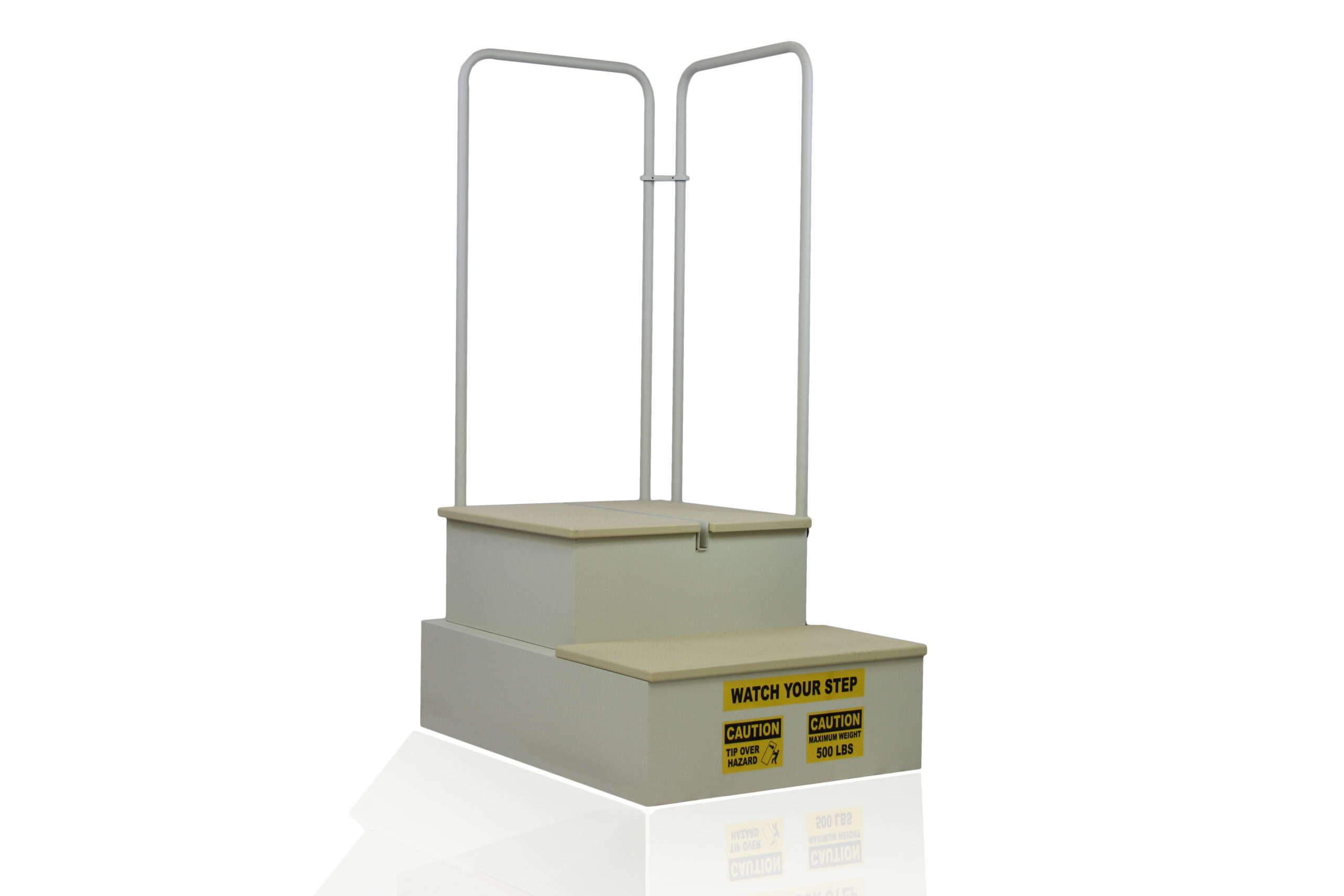

The Two Step Footstool raises the patient 16in above floor-level so any x-ray system can effectively accomplish weight-bearing lateral feet exams. It features dual patient support handles, easy-to-clean surfaces, and tip-back castors for effortless placement and storage.

Add to Quote

High volume order? Customization? Questions? Speak with a sales rep.

The Two Step Footstool solves the most common problem with weight bearing lateral feet exams. Most x-ray systems don’t allow the user to bring the focal spot of the tube low enough for a perpendicular x-ray of the patient’s feet. The Two Step raises the patient to 16in. above floor-level, so any x-ray system can effectively deliver proper images. It features dual patient support handles, easy-to-clean surfaces, and tip-back casters for effortless placement and storage at half the price of the competition.
  • Ideal for lateral weight bearing exams
  • Safety handles for patient support
  • Durable, non-slip surfaces
  • 16in. high platform
  • Slot for a 17x17in. cassette size imaging receptor or smaller

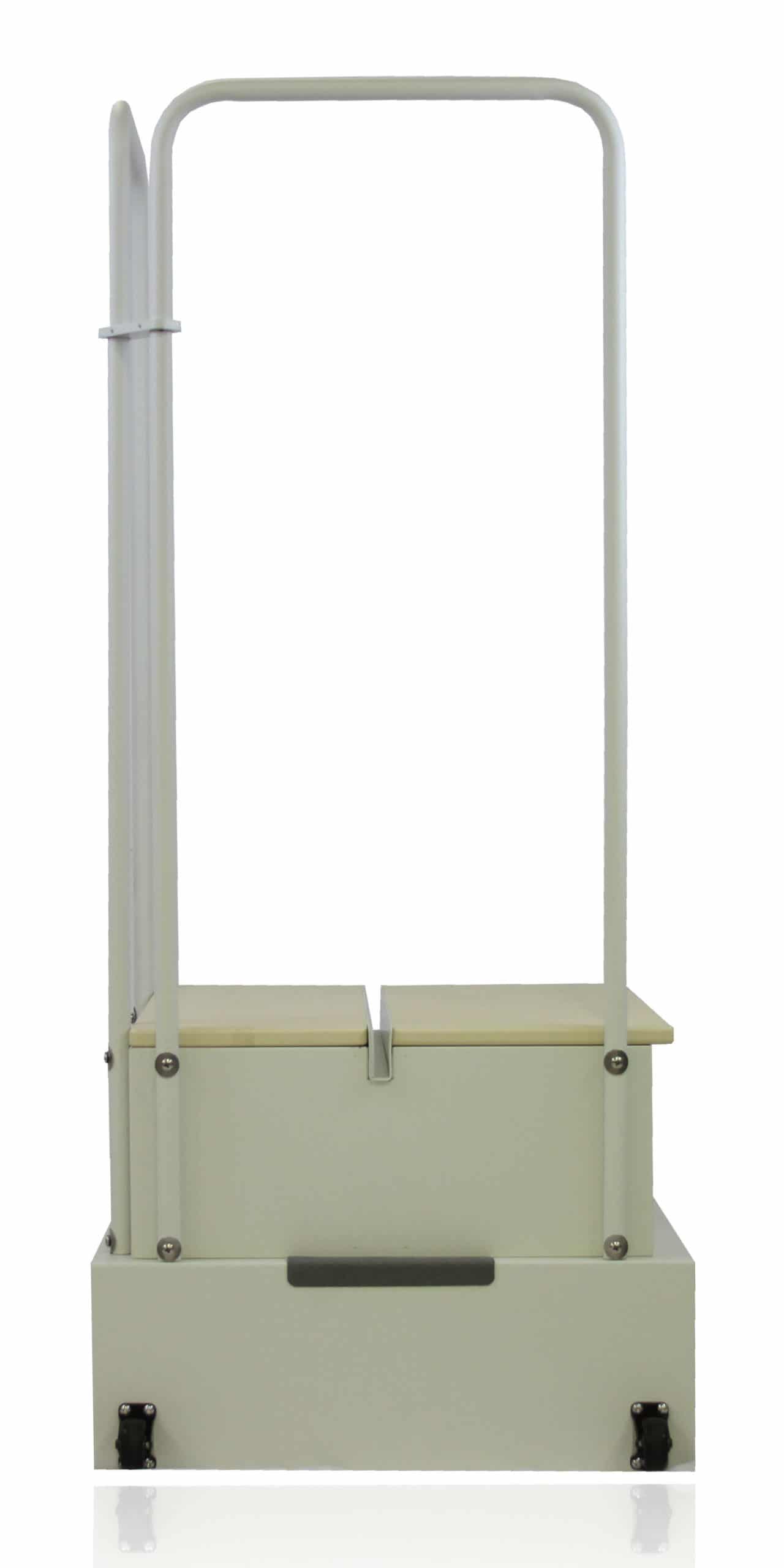

  • Tilt-back casters for easy mobility
  • Rated up to 500lb.
  • Additional handle configurations available
FS2
Outside: 36.54 x 23.43 x 53.94 in. (92.81 x 59.51 x 137.01 cm)
Slot width: .67 in. (1.7 cm)
Platform: 20.98 x 21.34 in. (53.29 x 54.20 cm)
Handrail Height: 53.94 in. (137 cm)
78lbs. (35.4 kg)
Fully Assembled: 1 pallet, 48 x 36 x 60 in. (121.92 x 91.44 x 152.4 cm)
Partially Assembled:
Box 1: 48 x 36 x 4 in. (121.92 x 91.44 x 10.16 cm)
Box 2: 24 x 24 x 13 in. (60.96 x 60.96 x 33.02 cm)
Box 3: 40 x 30 x 12 in. (101.6 x 76.2 x 30.48 cm)
Fully Assembled: 150 lbs.
Partially Assembled:
Box 1: 20 lbs (9.07 kg)
Box 2: 45 lbs. (20.41 kg)
Box 3: 45 lbs. (20.41 kg)
500 lbs. (226.8 kg)

DR Imaging Footstools Brochure

View

Two Step Footstool Brochure

View

Two Step Footstool Installation Guide and User Instructions

View
